Armor 20WT Mil-Standard 810H Encrypted DMR Smartphone PTT

MILITARY STANDARD 810H CERTIFICATION

What is MIL-STD-810H?

MIL-STD-810 is a US military standard that ensures equipment can withstand the specific conditions and environmental stresses it may face throughout its lifetime. This is done by replicating the effects those environments will have on the product.

Though MIL-STD-810 was originally developed in the 1950s for testing military equipment, the standard has since expanded to cover consumer tech in order to demonstrate the durability of devices like rugged phones and smartwatches.

MIL-STD-810H is the most recently revised version of the standard, replacing MIL-STD-810G. MIL-STD-810H was published in 2019.

Armor 20WT Specifications

Walkie-Talkie Function

● 10850mAh Powerful Battery

● 33WFast Charging

● Helio G99 Soc 6nm

● Up to 20GB RAM(=12GB+8GB Virtual Memory),256GB ROM

● 50MP Rear Camera,16MP Front Camera

● 5.65-inch FHD+ Display

● Android 12

● Face Unlock + Fingerprint ID

● Corning® Gorilla® Glass ,1080*2160 FHD+ Display

● NFC + Google Pay

● 4G Global Bands（Not compatible with AT&T or Cricket activations or with CDMA Networks like Verizon, Sprint）

GSM: B2/3/5/8 CDMA: 1X(BC0/BC1) WCDMA: B1/2/4/5/6/8/19 LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66 LTE-TDD: B34/38/39/40/41

● GPS + GLONASS + Beidou + Galileo Navigation



PTT (Push-To-Talk) over DMR

Communication Has No LimitS

The perfect integration of a traditional DMR PTT and a rugged phone makes our glorious Armor 20WT. Its antenna is free to assemble and disassemble, thus carrying everywhere conveniently. Much longer battery life than common walkie talkie thanks to the 10850mAh mighty battery.

Real-Time Commmunication Like Face-to-Face

400-480MHz higher frequency range, the distance between you and your speaking partners can be wider. Intercommunicate with one or multiple intercom devices, you are always talking to your partners straightway like face-to-face communication, making team work with highly efficient.

Versatile Industry Solutions

Great communication handset for workers in areas of Subway or Rail Transit, Petroleum or Chemical, Fishery or Forestry, Warehousing and Logistics, Coal Mine, Building Construction, Emergency Rescue, Law Enforcement, Electricity or Energy.

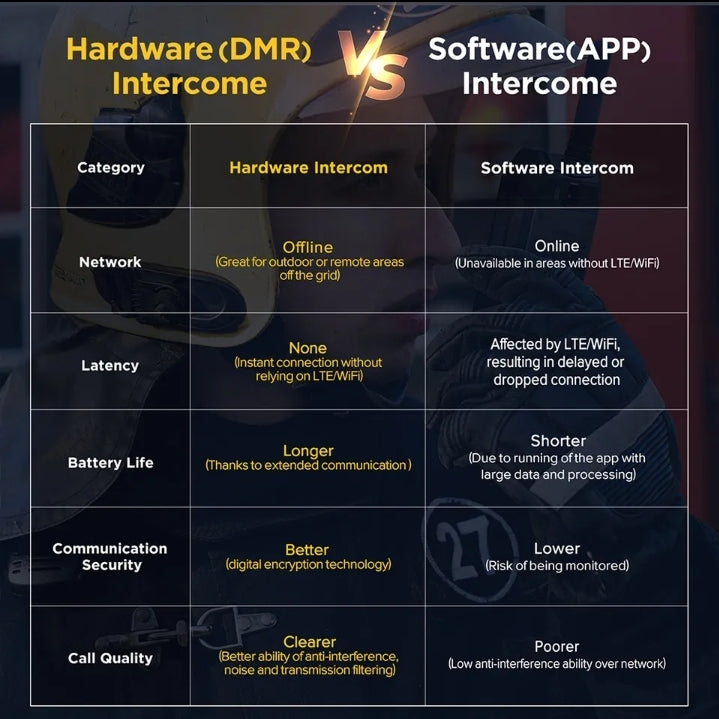

Hardware (DMR) Intercom VS. Software (App) Intercom

Front-Facing Dual Speaker

Twins Sound Powerhouse

Two bilateral speakers on the front won't be blocked by your gaming hands. With max 100dB lundness,

music and ringtone put out clear sound to cover wider range. Immersive impression would overwhelm you when you are playing games or watching movies.

Bigger Capacity, More Capabilities

Even with more features like DMR PTT, Armor 20WT packs a powerful 10850mAh battery to drain for several days. Never worry about low battery but immerse in your time of music, movies or games. 33W fast charging makes the battery bar to hold for 2 days by just 10 minutes charging. OTG reverse charging might give you an emergency help.





* The battery is non-removable, removing it may cause damage to the device.



IP68/IP69K, MIL-STD-810H

Tough · Spunky · Fearless

Certified by IP68/IP69K proof, Armor 20WT has greater ability to survive water, dust and drops. Upgraded  "H" standard is more tougher than "G" grade, stronger to endure abrasions, shocks, drops and harsher environment. Good working phone for outdoor workers and enthusiasts.

* Armor 20WT is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 1.5 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor 20WT. Liquid damage not covered under warranty.





Helio G99 Soc 6nm

A Nimble Brain Center

The Helio G99 brings the G-series to an upgraded 6nm production process with 2 x Cortex-A76 cores clocked at up to 2.2 GHz and 6 x Cortex-A55 cores clocked at up to 2 GHz. Such a high-performance CPU under the hood boost performance for gaming, streaming, multitasking and so on.

Up to 20GB RAM, 256GB ROM

All In, All Stay

12GB RAM + 256GB ROM is near the top level. If you activate the 8GB virtual memory, you get total 20GB of phone storage, making lightning browsing, multi-tasking and gaming on the go. Still 2TB expandable with a microSD. No storage anxiety for mass pictures, videos, files, music, etc.

*The 8GB Virtual Memory can be activated in Settings to top out at 20GB of RAM. Some software might not be compatible with this feature.

*The microSD card is not included and can be purchased separately if needed.

50MP Rear Camera

Incredible low light photography. Comes with Samsung JN1 CMOS sensor, the 50MP rear shooter takes super clear pictures which are still very clear if zoom in to see details. Full details endures no matter for capturing portrait or scenery.

16MP Front Camera

16MP Sony camera is quite a configuration for clear, bright selfies or video calls. Enhanced with the Portrait mode, getting some light filters and simple optimization, you look more clearer in the front camera.

5.65-inch FHD+ Display

Feed Your Visual Sense

Tipped with a 5.65 inches all screen, a single hand is in control. 1080*2160 FHD+ resolution offers wonderful color and splendid clarity. Fingertips flow with silky games. Corning® Gorilla® Glass screen has 2X the ability to survive drops and wear.

* 5.65 inches is the diagonal length of the display when the four rounded corners are taken to be pointed corners, the actual viewable area is slightly smaller.

Multi-Use Digital Toolkit

Versatile Outdoor Helper

Toolbox apps such as the Height Meter for building workers and other useful software tools for hiking, outdoor or home improvement make your life become easier without carrying physical tools to wear you out.

* The Custom Key and its ability to quickly access different functions work only when the phone screen is unlocked.

Pure Android 12

Customize Your Own Style

By "Material You", you can design the user interface to your liking with a range of different color and material options. Your safety and privacy have been improved by more serious system control. No ads or pre-installed apps but a stock and pure operating system.

4G Global Bands

Richer Online Experience

Off the grid often? Armor 20WT supports much wider frequency bands to settle the problem. Surfing the internet straightway and enjoying HD calls.

Global Network:

GSM: B2/3/5/8

CDMA: 1X(BC0/BC1)

WCDMA: B1/2/4/5/6/8/19

LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66

LTE-TDD: B34/38/39/40/41

* Dual 4G SIM requires the support of local telecom operator services, it may not be available in all regions.

* NFC and Google Pay is supported, and you are suggested to download Google Pay to use it; the available countries and regions are for your reference: https://pay.google.com/about.

About Power charger

1： We will shipEuropean plug by default.

2： If you have any questions about the plug of the charger, please contact customer services in advance. Please note that the plug of the charger is not within the scope of After-Sales services.

*Gifts/premiums are not covered by the warranty and will not be compensated if they are damaged The specific gift is subject to the actual sales of the product.

Armor 20WT Specification
Appearance Design
Color	Black
Material	PC + Alloy
USB	Type-C, USB 2.0
Headphone Jack	No
Card Slots	3, 1 Nano-SIM+ 1 Nano-SIM+ 1 microSD
Keys	Right: Power button(Fingerprint, Left: PTT Key +Volume button
Size & Weight
Product Size	164.8*79.2*18.15 mm
Product Weight	382g
Package Size	100.5*196.5*63 mm
Package Weight	770 g
Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.
Rugged
Waterproof	1.5M/30 Minutes waterproof
Dustproof	1M/24 Hours concrete deep
Shockproof	1.5M drop resistance
Working Temperature	-20℃ - 55 ℃ (-4℉ - 131℉)
Certification	IP68/IP69K/MIL-STD-810H
Display
Screen Size	5.65-inch
Screen Resolution	1080*2160 FHD+
Aspect Ratio	18:9
PPI	427
Color Depth	8bit, 16.7M
Refresh Rate	60Hz
Screen-to-Body Ratio	74%
Multi-touch	5
Processor
CPU Model	MediaTek Helio G99 6nm
Main frequency	2.2GHz
CPU Core	8, 2*Cortex-A76 2.2GHz+6 Cortex-A55 2GHz
GPU	Arm Mali-G57 MC2
RAM & Storage
RAM	20GB=12GB + 8GB expansion (The 8GB virtual memory can be activated in Settings at your will. )
Storage	256GB
Max. Expansion Supported	2TB
Rear Camera
Rear Camera Numbers	1
Main Rear Camera	Pixel: 50MP
	Details: Samsung JN1 CMOS sensor, 1μm, 5 piece lens, FOV 79.2°, ƒ/1.8 large aperture
Flash	2
Video Recording Resolution	1080P@30fps, 720P@30fps, 480P@30fps
Front Camera
Pixel	16MP
Details	Sony IMX481 sensor, 1μm, 5 piece lens, FOV 81°, ƒ/2.2 large aperture
Video Recording Resolution	1080P@30fps, 720P@30fps, 480P@30fps
Battery & Charging
Capacity	10850mAh
Watt Hours Per Battery	41.77 Wh
Battery Type	lithium-ion polymer battery
Charging Details	33W，11V/3A
Standby Time	600 Hours
Talk Time	45 Hours
Network & Connectivity
Card Type	Nano+Nano+microSD
Cellular	4G/3G/2G( Not compatible with AT&T or Cricket activations or with CDMA Networks like Verizon, Sprint)
	4G: FDD-LTE: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66 TDD-LTE: B34/38/39/40/41
	3G: WCDMA: B1/2/4/5/6/8/19
	2G: GSM: B2/3/5/8 CDMA: 1X(BC0/BC1)
Standby Mode	Dual sim dual standby
VoNR	Whether you can use VoLTE depends on the local carriers, because not all of the the local carriers can support this function.
VoLTE	Support
WiFi	2.4G/5G, 802.11 a/ac/b/g/n
Bluetooth Version	BT5.2
Navigation	GPS/GLONASS/Beidou/Galileo
Audio
Speaker Numbers	2
Speaker Model	1325 BOX
Speaker Power	1W
Smart PA	AW88394
Loudness	97 dB ± 3dB
Security
Fingerprint ID	Support
Face Unlock	Support
System & Features
Android Version	Android 12
Language	Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese and others, 200 Android languages in total.
Blinking Notification Light	Support, red/green/blue light
Battery Status Light	Support
Audio Format Supported	MID/FLAC/MKA/MP3/M4A/AAC/AMR/OGG/MP2
Video Format Supported	MOV/FLV/MKV/AVI/3GP/MP4
Image Format Supported	GIF/JPEG/PNG/BMP
Text Format Supported	TXT/HTML
FM Radio	Support,Wired FM radio
Sensor	Proximity Sensor, Light Sensor, Gravity sensor, Acceleration Sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Air pressure sensor, Infrared sensor
Special Features
Underwater Camera	Support
Gloves Mode	Support
Digital Toolbox	Height Meter, Compass, Gradienter, Flashlight, Hanging painting, Magnifier, Alarm bell, Plumb bob, Barometer, Protractor, Noise test, Pedometer
OTG Function	Support
NFC	Support
Packing List	1 x Phone 1 x AC power charger(EU plug) 1 x Data cable (100cm) 1 x Protective Film (Pre-installed) 2 x Screwdriver 2 x Antenna Port Cover 1 x Lanyard 1 x Multi-language user manual 1 x Intercom User Guides 1 x Multi Function Instruction card 1 x Charging Instruction card 1 x Safety Prompt card 1 x Warranty card
